SONNET

SONNET xMac Studio Echo III module

27 000 kr
21 600 kr exkl. moms

SONNET xMac Studio Echo III module


Pro 3U Rackmount Enclosure for Mac Studio With Echo I One-Slot Thunderbolt to PCIe Card Expansion System

https://www.youtube.com/watch?v=i75EqfTTJ1w

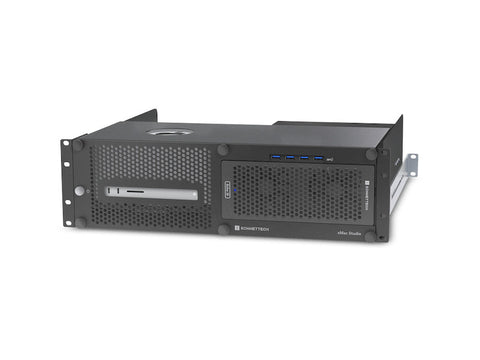

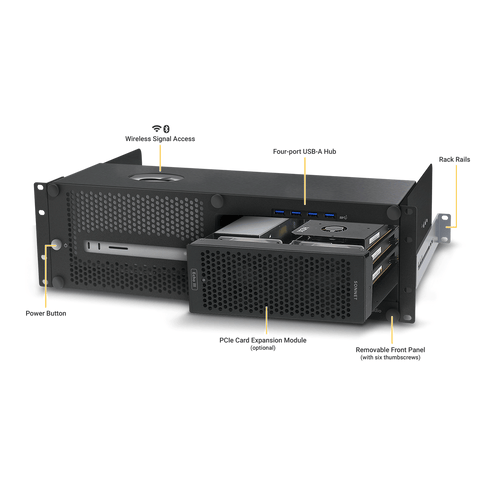

Sonnet’s xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module
to support diverse audio and video application needs

Three Systems to Choose From
For many creative professionals, PCIe card expansion is not an option – its a necessity for connecting specialty cards to
handle audio and video post-production projects. Sonnet designed the xMac Studio for pro workflow flexibility;
choose a system configured with a Thunderbolt to PCIe card expansion module that best suits your needs.
xMac Studio is also available without a module so you can add one at a later date, or use one of your existing
compatible Sonnet expansion modules.

Formfactor
• 3U rackmount enclosure

External Connectors
• Four USB-A ports


Echo III Module

External Connectors
• TwoThunderbolt ports
• Power (C14-type)

Internal Connector
• 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power)

Expansion Slot (Facing Rear, Top to Bottom)
• One x8 mechanical (x8 electrical) PCIe 3.0
• One x16 mechanical (x8 electrical) PCIe 3.0
• One x8 mechanical (x4 electrical) PCIe 3.0

PCIe Cards Supported
• One full-length, full-height, double-width PCIe card, plus one single-width card or
• Three full-length, full-height, single-width PCIe cards

Power Supply
• Universal 400W, 115-230V AC, 50-60 Hz


Package Contents
• xMac Studio enclosure
• Echo III Module (Thunderbolt to PCIe card expansion)
• Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
• Thunderbolt cable
• 6-pin auxiliary power cable
• ThunderLok 3 Thunderbolt connector retainer clip(5)
• Extension rails for rack depth 16-24 inches
• Dual Noctua quiet fans (rated at 17 dbA)
• Adhesive-backed magnet
• Documentation

Dimensions (WxDxH)
19 x 16.5 x 5.2 in. (48 x 41.9 x 13.3 cm)

Weight: 9,53KG

Warranty: 2 years
